Payload Customization

Transform webhook payloads and create dynamic URLs to match your system's exact requirements. Eliminate middleware with JSONata expressions.

Overview

Field Nation webhooks now support customizable payloads and dynamic URLs, giving you complete control over how webhook data is structured and delivered.

What You Can Do

Capability	Description
Transform Payloads	Restructure webhook data to match your system's expected format using JSONata expressions.
Dynamic URLs	Include event data in webhook URLs for intelligent routing (e.g., route by region or company).
Filter Fields	Send only the fields you need — reduce payload size and processing overhead.
Rename Fields	Match your system's naming conventions without building middleware.

Why Customize Payloads?

The Problem

Without customization, integrating with external systems requires:

Middleware servers to transform Field Nation's payload format
Extra development time to map fields between systems
Infrastructure costs to maintain translation services
Processing delays from additional network hops

The Solution

With payload customization, transformations happen at the source:

Before	After
Build middleware to transform	Transform at delivery
Maintain translation servers	No extra infrastructure
One fixed payload format	Unlimited custom formats
Static webhook URLs	Dynamic, data-driven URLs

Real-World Use Cases

ServiceNow
Multi-Region Routing
Slack Notifications
Legacy Systems
Analytics Pipeline

Challenge: ServiceNow expects incident tickets in a specific format with custom field names.

JSONata Script:

{
  "u_external_ticket_id": $string($.workorder.id),
  "short_description": $.workorder.title,
  "state": $.workorder.status.name = "Work Done" ? "6" : "2",
  "assignment_group": "Field Services",
  "u_technician": $.workorder.assignee.first_name & " " & $.workorder.assignee.last_name,
  "u_client_company": $.workorder.company.name,
  "work_notes": "Status updated via Field Nation at " & $.timestamp
}

Result: Direct webhook delivery to ServiceNow without middleware.

Challenge: Route work orders to region-specific endpoints automatically.

Dynamic URL Template:

https://{{$.workorder.location.country}}.api.company.com/workorders

Result:

US work orders → us.api.company.com/workorders
UK work orders → uk.api.company.com/workorders
CA work orders → ca.api.company.com/workorders

Challenge: Send formatted notifications to Slack when work orders complete.

JSONata Script:

{
  "text": "Work Order #" & $string($.workorder.id) & " - " & $.workorder.status.name,
  "blocks": [
    {
      "type": "section",
      "text": {
        "type": "mrkdwn",
        "text": "*" & $.workorder.title & "*\nStatus: " & $.workorder.status.name & "\nTechnician: " & $.workorder.assignee.first_name & " " & $.workorder.assignee.last_name
      }
    }
  ]
}

Result: Native Slack notifications without a middleware service.

Challenge: A 15-year-old ERP only accepts flat JSON with uppercase field names.

JSONata Script:

{
  "WORK_ORDER_ID": $.workorder.id,
  "WORK_ORDER_TITLE": $.workorder.title,
  "COMPANY_NAME": $.workorder.company.name,
  "TECHNICIAN_NAME": $.workorder.assignee.first_name & " " & $.workorder.assignee.last_name,
  "STATUS": $.workorder.status.name
}

Result: Direct integration with legacy systems that can't be modified.

Challenge: Data team needs webhook events in a format optimized for their data warehouse.

JSONata Script:

{
  "event_type": $.event.name,
  "event_timestamp": $.timestamp,
  "workorder_id": $.workorder.id,
  "company_id": $.workorder.company.id,
  "status": $.workorder.status.name,
  "location_state": $.workorder.location.state
}

Result: Webhook data flows directly into analytics pipeline without ETL processing.

Transformation Options

JSONata Expressions (Recommended)

JSONata is a powerful query and transformation language for JSON data.

Why JSONata?

It's purpose-built for JSON transformation, has a concise syntax, and supports complex operations like filtering, sorting, and aggregation.

Basic Field Selection

{
  "order_id": $.workorder.id,
  "title": $.workorder.title,
  "status": $.workorder.status.name
}

Concatenating Fields

{
  "technician_name": $.workorder.assignee.first_name & " " & $.workorder.assignee.last_name,
  "location": $.workorder.location.city & ", " & $.workorder.location.state
}

Conditional Logic

{
  "order_id": $.workorder.id,
  "is_complete": $.workorder.status.name = "Work Done",
  "priority": $.workorder.status.name = "At Risk" ? "high" : "normal",
  "state_code": $.workorder.status.name = "Work Done" ? "6" :
                $.workorder.status.name = "Approved" ? "7" : "2"
}

Accessing Arrays

{
  "work_order_id": $.workorder.id,
  "po_number": $.workorder.custom_fields.results[name="PO Number"].value,
  "tags": $.workorder.tags.results.name,
  "has_priority_tag": "Priority" in $.workorder.tags.results.name
}

Built-in Functions

{
  "work_order_id": $string($.workorder.id),
  "title_uppercase": $uppercase($.workorder.title),
  "timestamp": $now(),
  "scheduled_date": $substringBefore($.workorder.schedule.start.utc, "T")
}

Static JSON Merge

For simpler use cases, merge static fields into every webhook payload:

{
  "source": "field-nation",
  "environment": "production",
  "api_version": "3.0",
  "integration_id": "your-integration-id"
}

This adds the static fields to the original payload without transforming it.

Dynamic URL Templates

Include values from the webhook payload in your endpoint URL using template expressions.

Template Syntax

https://api.example.com/workorders/{{$.workorder.id}}/updates

Templates use {{ expression }} syntax where expression is a JSONata path.

Common Patterns

Route by Work Order ID

https://api.example.com/workorders/{{$.workorder.id}}/webhooks

Delivers to: https://api.example.com/workorders/12345/webhooks

Route by Company

https://api.example.com/clients/{{$.workorder.company.id}}/events

Delivers to: https://api.example.com/clients/100/events

Route by Region

https://{{$.workorder.location.country}}.api.example.com/webhooks

Delivers to: https://us.api.example.com/webhooks

Multiple Templates

https://api.example.com/{{$.workorder.company.id}}/workorders/{{$.workorder.id}}

Delivers to: https://api.example.com/100/workorders/12345

Restriction

Templates are not allowed in the domain/origin part of the URL for security reasons. https://{{$.malicious}}.example.com is not permitted.

Payload Field Reference

All webhook events include these fields that you can use in transformations:

Root Level

Path	Type	Description
`$.event.name`	string	Event name (e.g., `workorder.status.work_done`)
`$.event.params`	object	Event-specific parameters
`$.timestamp`	string	ISO 8601 timestamp when event occurred
`$.triggered_by_user.id`	number	User ID who triggered the event

Work Order Core

Path	Type	Description
`$.workorder.id`	number	Unique work order ID
`$.workorder.title`	string	Work order title
`$.workorder.description`	string	Detailed description
`$.workorder.status.id`	number	Status ID
`$.workorder.status.name`	string	Status name

Company & People

Path	Type	Description
`$.workorder.company.id`	number	Buyer company ID
`$.workorder.company.name`	string	Buyer company name
`$.workorder.manager.first_name`	string	Manager first name
`$.workorder.manager.last_name`	string	Manager last name
`$.workorder.assignee.id`	number	Assigned provider ID
`$.workorder.assignee.first_name`	string	Provider first name
`$.workorder.assignee.last_name`	string	Provider last name

Location

Path	Type	Description
`$.workorder.location.city`	string	City
`$.workorder.location.state`	string	State/Province
`$.workorder.location.zip`	string	ZIP/Postal code
`$.workorder.location.country`	string	Country code

Schedule & Pay

Path	Type	Description
`$.workorder.schedule.start.utc`	string	Scheduled start (UTC)
`$.workorder.schedule.end.utc`	string	Scheduled end (UTC)
`$.workorder.pay.type`	string	Pay type (fixed, hourly, etc.)
`$.workorder.pay.base.amount`	number	Base pay amount

Custom Fields & Tags

Path	Type	Description
`$.workorder.custom_fields.results`	array	Custom field objects
`$.workorder.custom_fields.results[n].name`	string	Field name
`$.workorder.custom_fields.results[n].value`	string	Field value
`$.workorder.tags.results`	array	Tag objects
`$.workorder.tags.results[n].name`	string	Tag name

Setting Up Payload Customization

Step 1: Create or Edit a Webhook

Navigate to Webhooks Dashboard and create a new webhook or edit an existing one.

Step 2: Enable Payload Override

Check the "Override default payload" option to enable customization. This reveals a preview panel showing your custom payload configuration.

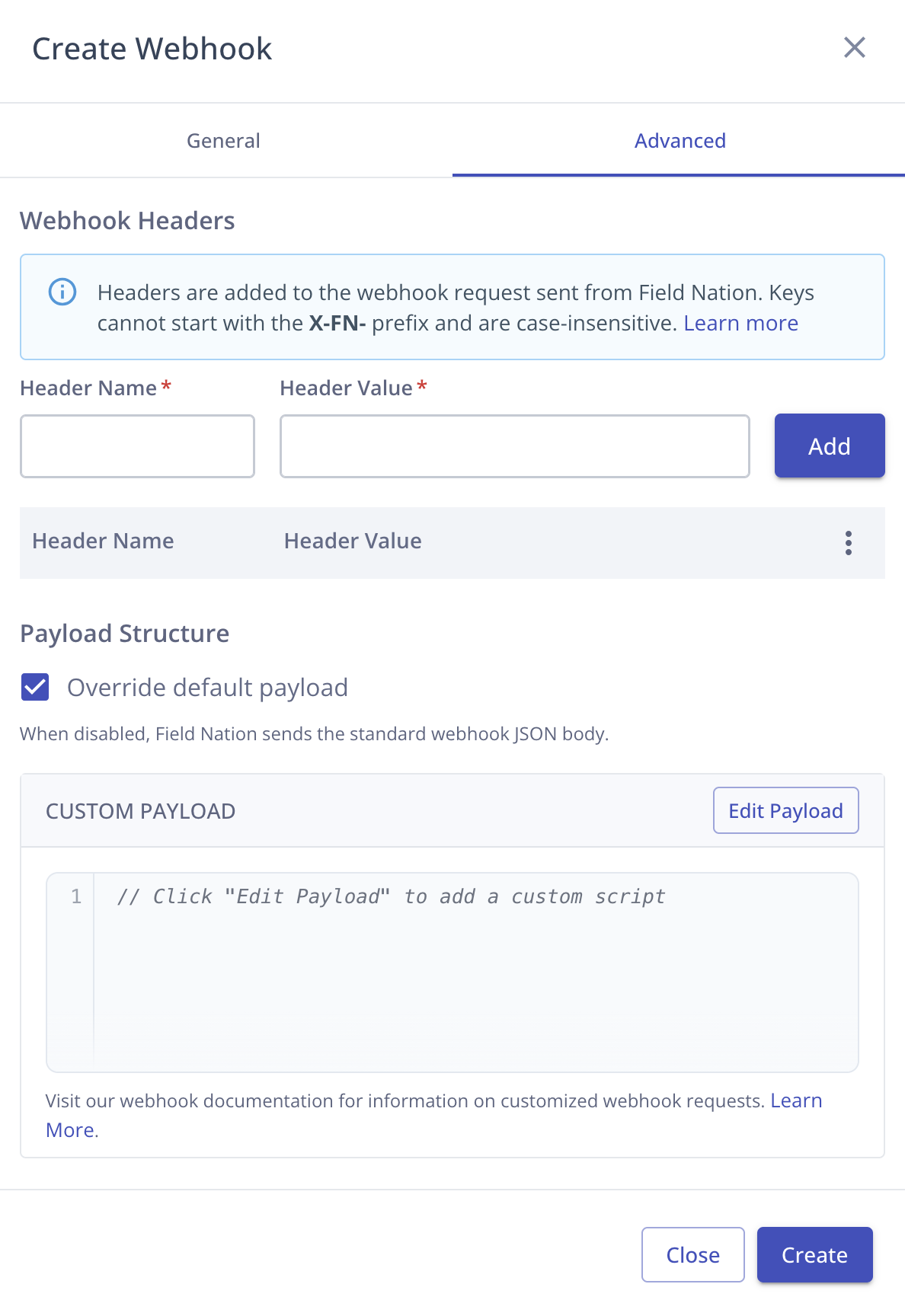

Enable Payload Customization

info

The payload customization workflow is identical whether you're creating a new webhook or editing an existing one. The only difference is clicking Create Webhook versus Update Webhook to save your changes.

Step 3: Open the Payload Editor

Click Edit Payload to open the side drawer where you can write your transformation script.

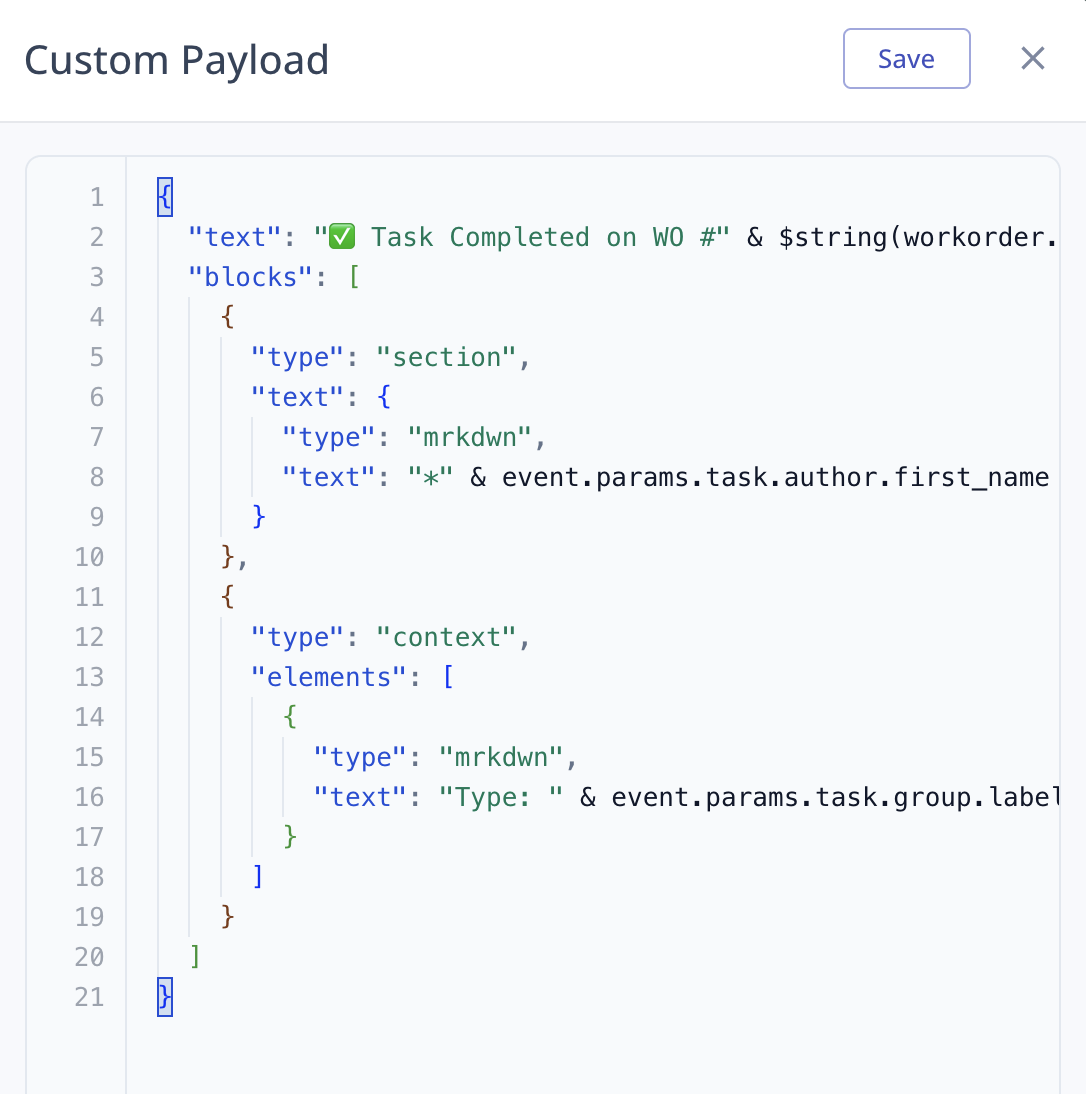

Webhook Payload Sidedrawer

Step 4: Select Script Language

Choose your transformation approach:

JSONata (recommended) — Dynamic expressions for complex transformations
JSON — Static field merge for simple additions

Step 5: Write Your Transformation Script

Enter your JSONata expression or JSON object:

{
  "ticket_id": $.workorder.id,
  "title": $.workorder.title,
  "status": $.workorder.status.name,
  "technician": $.workorder.assignee.first_name & " " & $.workorder.assignee.last_name
}

Step 6: Preview Your Payload

After saving in the side drawer, your transformation script appears in the preview panel. This shows what you've configured but hasn't been saved to the webhook yet.

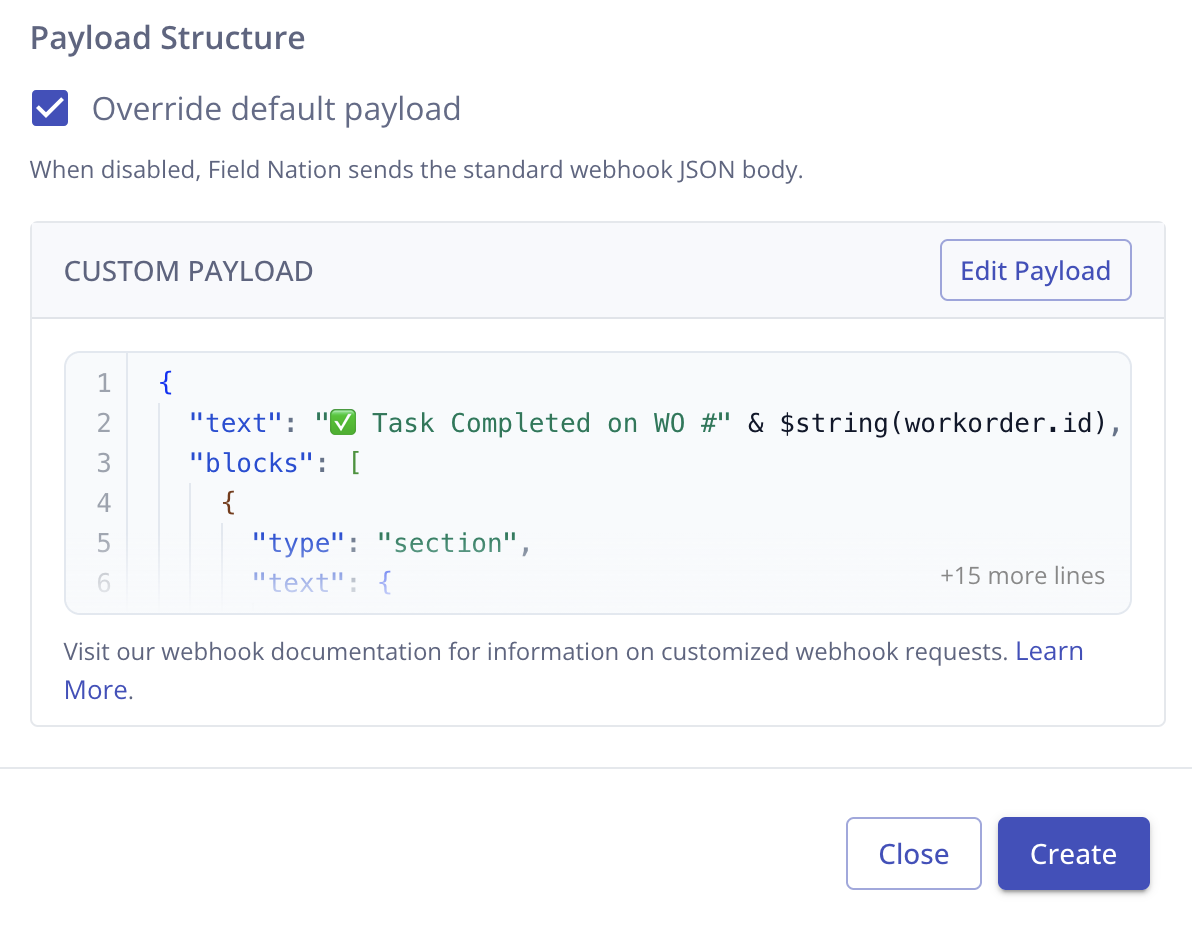

Saved Payload Preview

Important

The preview only shows your local changes. You must click Create Webhook (for new webhooks) or Update Webhook (for existing webhooks) to persist your payload customization.

Step 7: Add Dynamic URL (Optional)

If needed, update your webhook URL to include template expressions:

https://api.example.com/workorders/{{$.workorder.id}}

Step 8: Save and Test

Save the webhook configuration and trigger a test event to verify the transformation works correctly.

Best Practices

Start Simple

Begin with basic field selection, then add complexity as needed:

// Start here
{ "id": $.workorder.id, "status": $.workorder.status.name }

// Then expand
{
  "id": $.workorder.id,
  "status": $.workorder.status.name,
  "company": $.workorder.company.name,
  "technician": $.workorder.assignee.first_name & " " & $.workorder.assignee.last_name
}

Handle Missing Fields

Use the coalesce operator to provide defaults:

{
  "assignee_name": $.workorder.assignee.first_name ?
    ($.workorder.assignee.first_name & " " & $.workorder.assignee.last_name) :
    "Unassigned"
}

Test Before Production

Use the webhook test feature to validate transformations before enabling in production.

Keep Original Payloads

Original payloads are automatically preserved in Field Nation for debugging and re-delivery. You can access them through the delivery logs.

Debugging Tip

If a transformation fails, the original payload is still available in the delivery log details. Use this to diagnose and fix your script.

Troubleshooting

Transformation produces empty payload

Cause: JSONata expression doesn't match payload structure.

Solution:

Check field paths match the actual payload structure
Use $.workorder.id not $.data.id
Verify the event includes the fields you're accessing

URL template not resolving

Cause: Template expression returns undefined or null.

Solution:

Verify the field exists in the payload
Check for typos in the path
Use a fallback: {{$.workorder.id ? $.workorder.id : 'default'}}

Script validation error

Cause: Invalid JSONata syntax.

Solution:

Check for missing quotes around strings
Verify bracket matching
Test your expression at try.jsonata.org

Fields appear as null

Cause: Accessing fields that don't exist for this event.

Solution:

Not all events include all fields (e.g., assignee is null before assignment)
Use conditional logic to handle missing data

API Configuration

When creating or updating webhooks via API, include the webhookScript field:

curl -X POST https://api.fieldnation.com/api/v1/webhooks \
  -H "Authorization: Bearer YOUR_ACCESS_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "url": "https://api.example.com/workorders/{{$.workorder.id}}",
    "method": "post",
    "status": "active",
    "events": ["workorder.status.work_done"],
    "webhookScript": {
      "scriptLanguage": "jsonata",
      "script": "{ \"id\": $.workorder.id, \"status\": $.workorder.status.name }",
      "enabled": true
    }
  }'

webhookScript Fields

Field	Type	Description
`scriptLanguage`	string	`"jsonata"` or `"json"`
`script`	string	The transformation script
`enabled`	boolean	Toggle transformation on/off

Summary

Payload customization eliminates the need for middleware by transforming data at the source:

Capability	Benefit
JSONata transformations	Restructure data to match any system
Dynamic URLs	Route webhooks based on event content
Enable/disable toggle	Test without deleting configurations
Original payload storage	Debug with full context

Bottom line: Your webhooks, your format. No middleware required.

Payload Customization

Overview​

What You Can Do​

Why Customize Payloads?​

The Problem​

The Solution​

Real-World Use Cases​

Transformation Options​

JSONata Expressions (Recommended)​

Basic Field Selection​

Concatenating Fields​

Conditional Logic​

Accessing Arrays​

Built-in Functions​

Static JSON Merge​

Dynamic URL Templates​

Template Syntax​

Common Patterns​

Payload Field Reference​

Root Level​

Work Order Core​

Company & People​

Location​

Schedule & Pay​

Custom Fields & Tags​

Setting Up Payload Customization​

Step 1: Create or Edit a Webhook​

Step 2: Enable Payload Override​

Step 3: Open the Payload Editor​

Step 4: Select Script Language​

Step 5: Write Your Transformation Script​

Step 6: Preview Your Payload​

Step 7: Add Dynamic URL (Optional)​

Step 8: Save and Test​

Best Practices​

Start Simple​

Handle Missing Fields​

Test Before Production​

Keep Original Payloads​

Troubleshooting​

API Configuration​

webhookScript Fields​

Summary​

Overview

What You Can Do

Why Customize Payloads?

The Problem

The Solution

Real-World Use Cases

Transformation Options

JSONata Expressions (Recommended)

Basic Field Selection

Concatenating Fields

Conditional Logic

Accessing Arrays

Built-in Functions

Static JSON Merge

Dynamic URL Templates

Template Syntax

Common Patterns

Payload Field Reference

Root Level

Work Order Core

Company & People

Location

Schedule & Pay

Custom Fields & Tags

Setting Up Payload Customization

Step 1: Create or Edit a Webhook

Step 2: Enable Payload Override

Step 3: Open the Payload Editor

Step 4: Select Script Language

Step 5: Write Your Transformation Script

Step 6: Preview Your Payload

Step 7: Add Dynamic URL (Optional)

Step 8: Save and Test

Best Practices

Start Simple

Handle Missing Fields

Test Before Production

Keep Original Payloads

Troubleshooting

API Configuration

webhookScript Fields

Summary
